公稱通徑:DN100-DN1600 | 公稱壓力:1.0MPa-4.0MPa | 適用介質:水、蒸汽等 |
適用溫度:-10℃-425℃ | 閥體材質:碳鋼、不銹鋼 | 操作方式:手柄、蝸輪 |
設計與制造標準:GB/T12238-89 | 結構長度標準:GB/T12221-89 | 連接法蘭標準:GB/T9113-88 |
序號 | 零件名稱 | 碳鋼 | 不銹鋼 | 低溫鋼 |
1 | 底蓋螺釘 | 8.8/B7 | B8 | B8/L7 |
2 | 底蓋 | A105 | 304 | 304/LF2 |
3 | 墊片 | 304+石墨 | 304+石墨 | 304+石墨 |
4 | 卡環 | 1035 | 304 | 304 |
5 | 下軸套 | SF-1 | SF-1S/C95200 | SF-1S/C95200 |
6 | 閥體 | WCB | CF8 | LCB/LC1 |
7 | 密封圈 | 304+石墨 | 304+石墨 | 304+石墨 |
8 | 壓板 | A105 | 304 | 304/LF2 |
9 | 壓板螺釘 | 8.8/B7 | B8 | B8/L7 |
10 | 上軸套 | SF-1 | SF-1S/C95200 | SF-1S/C95200 |
11 | 填料 | 柔性石墨 | 柔性石墨 | 柔性石墨 |
12 | 壓蓋螺柱 | 8.8/B7 | B8 | B8/L7 |
13 | 填料壓蓋 | WCB | CF8 | CF8/LF2 |
14 | 支架 | WCB | WCB/CF8 | WCB/CF8 |
15 | 閥桿 | 410/420 | 304/17-4PH | 410/17-4PH |
16 | 蝶板 | WCB | CF8 | LCB/LC1 |
17 | 銷軸 | 410/420 | 304/17-4PH | 410/17-4PH |
公稱 |
外形尺寸 |
連接尺寸 |
||||||||||
L |
H |
D43H/D343H/D643H/D943H |
PN0.6MPa |
PN1.0MPa |
||||||||
短 |
長 |
H3 |
A3 |
B3 |
D |
D1 |
Z-d |
D |
D1 |
Z-d |
||
50 |
108 |
150 |
112 |
530 |
250 |
255 |
140 |
110 |
4-14 |
165 |
125 |
4-18 |
65 |
112 |
170 |
115 |
530 |
250 |
255 |
160 |
130 |
4-14 |
185 |
145 |
4-18 |
80 |
114 |
180 |
120 |
565 |
250 |
255 |
190 |
150 |
4-18 |
200 |
160 |
8-18 |
100 |
127 |
190 |
138 |
600 |
250 |
255 |
210 |
170 |
4-18 |
220 |
180 |
8-18 |
125 |
140 |
200 |
164 |
640 |
250 |
255 |
240 |
200 |
8-18 |
250 |
210 |
8-18 |
150 |
140 |
210 |
175 |
705 |
300 |
315 |
265 |
225 |
8-18 |
285 |
240 |
8-22 |
200 |
152 |
230 |
208 |
775 |
300 |
315 |
320 |
280 |
8-18 |
340 |
295 |
8-22 |
250 |
165 |
250 |
243 |
945 |
300 |
315 |
375 |
335 |
12-18 |
395 |
350 |
12-22 |
300 |
178 |
270 |
283 |
1070 |
300 |
315 |
440 |
395 |
12-22 |
445 |
400 |
12-22 |
350 |
190 |
290 |
310 |
1140 |
300 |
315 |
490 |
445 |
12-22 |
505 |
460 |
16-22 |
400 |
216 |
310 |
340 |
1210 |
300 |
315 |
540 |
495 |
16-22 |
565 |
515 |
16-26 |
450 |
222 |
330 |
380 |
1335 |
575 |
714 |
595 |
550 |
16-22 |
615 |
565 |
20-26 |
500 |
229 |
350 |
410 |
1415 |
575 |
714 |
645 |
600 |
20-22 |
670 |
620 |
20-26 |
600 |
267 |
390 |
470 |
1605 |
656 |
810 |
755 |
705 |
20-26 |
780 |
725 |
20-30 |
700 |
292 |
430 |
550 |
1844 |
656 |
810 |
860 |
810 |
24-26 |
895 |
840 |
24-30 |
800 |
318 |
470 |
640 |
2040 |
656 |
810 |
975 |
920 |
24-30 |
1015 |
950 |
24-33 |
900 |
330 |
510 |
710 |
2255 |
785 |
863 |
1075 |
1020 |
24-30 |
1115 |
1050 |
28-33 |
1000 |
410 |
550 |
770 |
2380 |
785 |
863 |
1175 |
1120 |
28-30 |
1230 |
1160 |
28-36 |
1200 |
470 |
630 |
890 |
2640 |
785 |
863 |
1405 |
1340 |
32-33 |
1455 |
1380 |
32-39 |
1400 |
530 |
710 |
920 |
2886 |
|
|
1630 |
1560 |
36-36 |
1675 |
1590 |
36-42 |
1600 |
600 |
790 |
1085 |
3156 |
|
|
1820 |
1760 |
40-36 |
1915 |
1820 |
40-48 |
1800 |
670 |
870 |
1230 |
3421 |
|
|
2045 |
1970 |
44-39 |
2115 |
2020 |
44-48 |
2000 |
760 |
950 |
1350 |
3685 |
|
|
2265 |
2180 |
48-42 |
2325 |
2230 |
48-48 |
公稱 |
外形尺寸 |
連接尺寸 |
||||||||||
L |
H |
D43H/D343H/D643H/D943H |
PN1.6MPa |
PN2.5MPa |
||||||||
短 |
長 |
H3 |
A3 |
B3 |
D |
D1 |
Z-d |
D |
D1 |
Z-d |
||
50 |
108 |
150 |
112 |
530 |
250 |
255 |
165 |
125 |
4-18 |
165 |
125 |
4-18 |
65 |
112 |
170 |
115 |
550 |
250 |
255 |
185 |
145 |
4-18 |
185 |
145 |
8-18 |
80 |
114 |
180 |
120 |
565 |
250 |
255 |
200 |
160 |
8-18 |
200 |
160 |
8-18 |
100 |
127 |
190 |
138 |
600 |
250 |
255 |
220 |
180 |
8-18 |
235 |
190 |
8-22 |
125 |
140 |
200 |
164 |
640 |
250 |
255 |
250 |
210 |
8-18 |
270 |
220 |
8-26 |
150 |
140 |
210 |
175 |
705 |
300 |
315 |
285 |
240 |
8-22 |
300 |
250 |
8-26 |
200 |
152 |
230 |
208 |
775 |
300 |
315 |
340 |
295 |
12-22 |
360 |
310 |
12-26 |
250 |
165 |
250 |
243 |
945 |
300 |
315 |
405 |
355 |
12-26 |
425 |
370 |
12-30 |
300 |
178 |
270 |
283 |
1070 |
300 |
315 |
460 |
410 |
12-26 |
485 |
430 |
16-30 |
350 |
190 |
290 |
310 |
1140 |
300 |
315 |
520 |
470 |
16-26 |
555 |
490 |
16-33 |
400 |
216 |
310 |
340 |
1210 |
300 |
315 |
580 |
525 |
16-30 |
620 |
550 |
16-36 |
450 |
222 |
330 |
380 |
1335 |
575 |
714 |
640 |
585 |
20-30 |
670 |
600 |
20-36 |
500 |
229 |
350 |
410 |
1415 |
575 |
714 |
750 |
650 |
20-33 |
730 |
660 |
20-36 |
600 |
267 |
390 |
470 |
1605 |
656 |
810 |
840 |
770 |
20-36 |
845 |
770 |
20-39 |
700 |
292 |
430 |
550 |
1844 |
656 |
810 |
910 |
840 |
24-36 |
960 |
875 |
24-42 |
800 |
318 |
470 |
640 |
2040 |
656 |
810 |
1025 |
950 |
24-39 |
1085 |
990 |
24-48 |
900 |
330 |
510 |
710 |
2255 |
785 |
863 |
1125 |
1050 |
28-39 |
1185 |
1090 |
28-48 |
1000 |
410 |
550 |
770 |
2380 |
785 |
863 |
1255 |
1170 |
28-42 |
1320 |
1210 |
28-56 |
1200 |
470 |
630 |
890 |
2640 |
785 |
863 |
1485 |
1390 |
32-48 |
1530 |
1420 |
32-56 |
1400 |
530 |
710 |
920 |
2886 |
|
|
1685 |
1590 |
36-48 |
1755 |
1640 |
36-62 |
1600 |
600 |
790 |
1085 |
3156 |
|
|
1930 |
1820 |
40-56 |
1975 |
1860 |
40-62 |
1800 |
670 |
870 |
1230 |
3421 |
|
|
2130 |
2020 |
44-56 |
2195 |
2070 |
44-70 |
2000 |
760 |
950 |
1350 |
3685 |
|
|
3685 |
2230 |
48-62 |
2425 |
2300 |
48-70 |
公稱 |
外形尺寸 |
連接尺寸 |
|||||||
L |
H |
D43H/D343H/D643H/D943H |
PN4.OMPa |
||||||
短 |
長 |
H3 |
A3 |
B3 |
D |
D1 |
Z-d |
||
50 |
108 |
150 |
112 |
530 |
250 |
255 |
165 |
125 |
4-18 |
65 |
112 |
170 |
115 |
530 |
250 |
255 |
185 |
145 |
8-18 |
80 |
114 |
180 |
120 |
565 |
250 |
255 |
200 |
160 |
8-18 |
100 |
127 |
190 |
138 |
600 |
250 |
255 |
235 |
190 |
8-22 |
125 |
140 |
200 |
164 |
640 |
250 |
255 |
270 |
220 |
8-26 |
150 |
140 |
210 |
175 |
705 |
300 |
315 |
300 |
250 |
8-26 |
200 |
152 |
230 |
208 |
775 |
300 |
315 |
375 |
320 |
12-30 |
250 |
165 |
250 |
243 |
945 |
300 |
315 |
450 |
385 |
12-33 |
300 |
178 |
270 |
283 |
1070 |
300 |
315 |
515 |
450 |
16-33 |
350 |
190 |
290 |
310 |
1140 |
300 |
315 |
580 |
510 |
16-36 |
400 |
216 |
310 |
340 |
1210 |
300 |
315 |
660 |
585 |
16-39 |
450 |
222 |
330 |
380 |
1335 |
575 |
714 |
685 |
610 |
20-39 |
500 |
229 |
350 |
410 |
1415 |
575 |
714 |
755 |
670 |
20-42 |

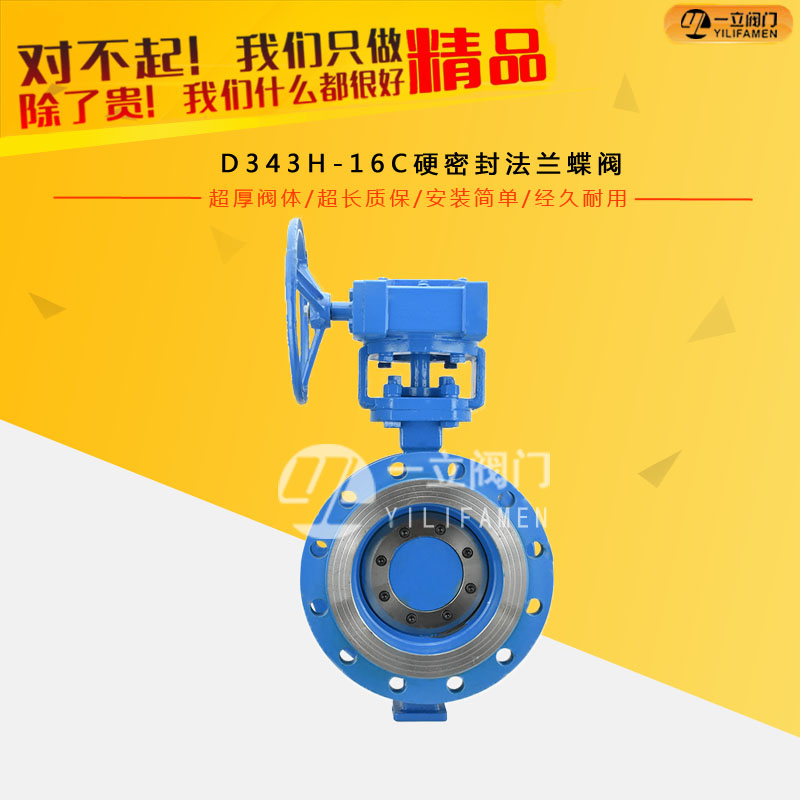

咨詢:D343H-16C硬密封法蘭蝶閥
